Sample behavioral waveforms for design file lpm_compare1.vhd

The following waveforms show the behavior of lpm_comparator megafunction for the chosen set of parameters in design lpm_compare1.vhd. The design lpm_compare1.vhd is 11 bit UNSIGNED comparator.

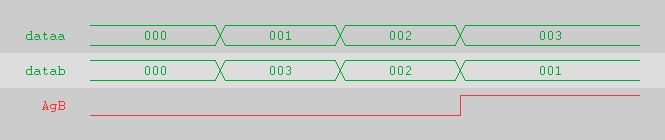

Fig. 1 : Wave showing comparator operation.
